Minispeed

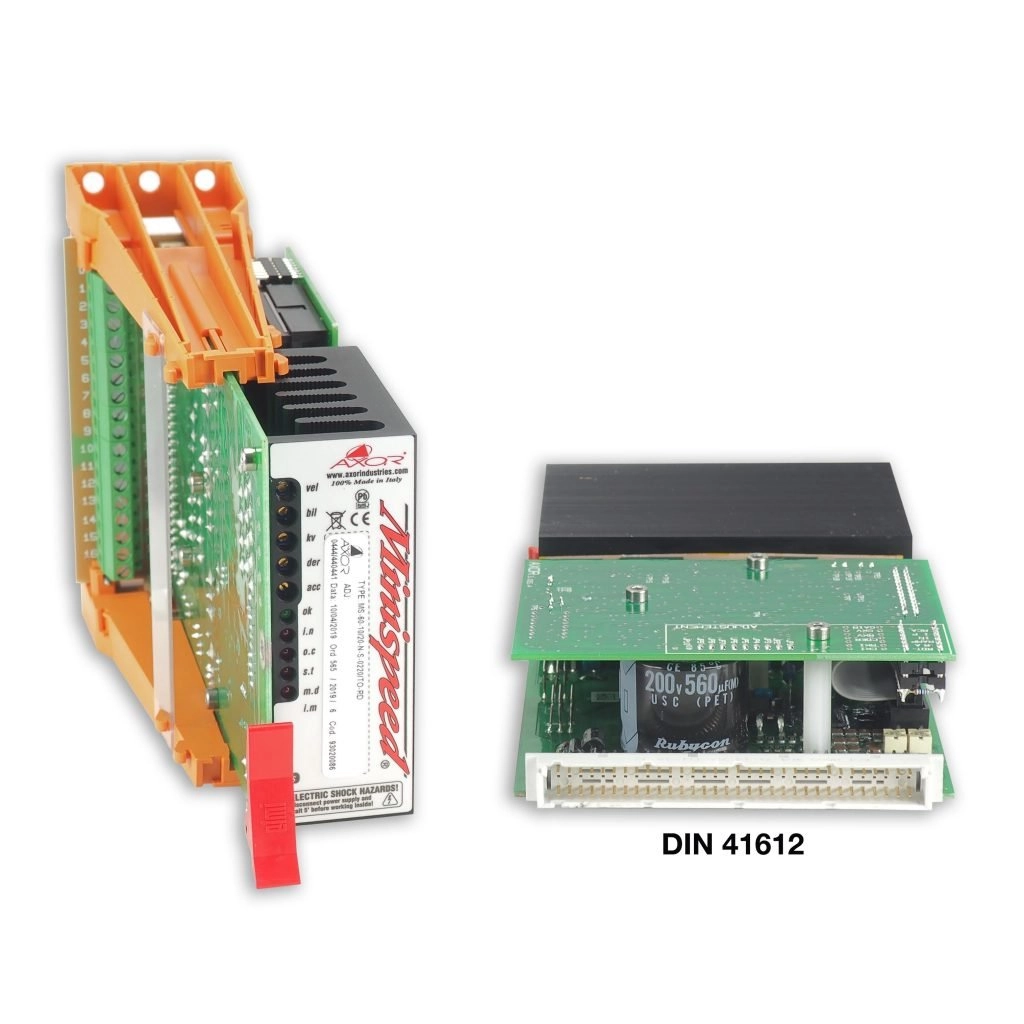

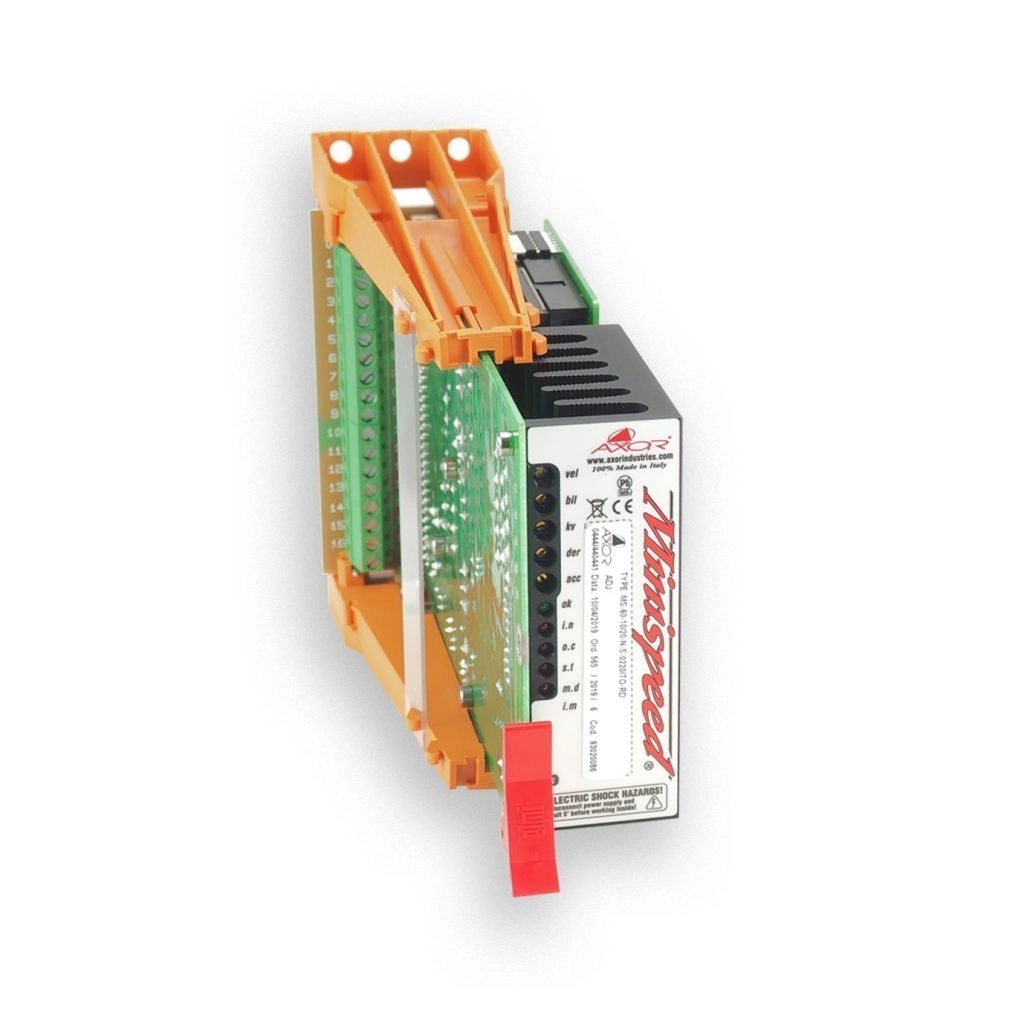

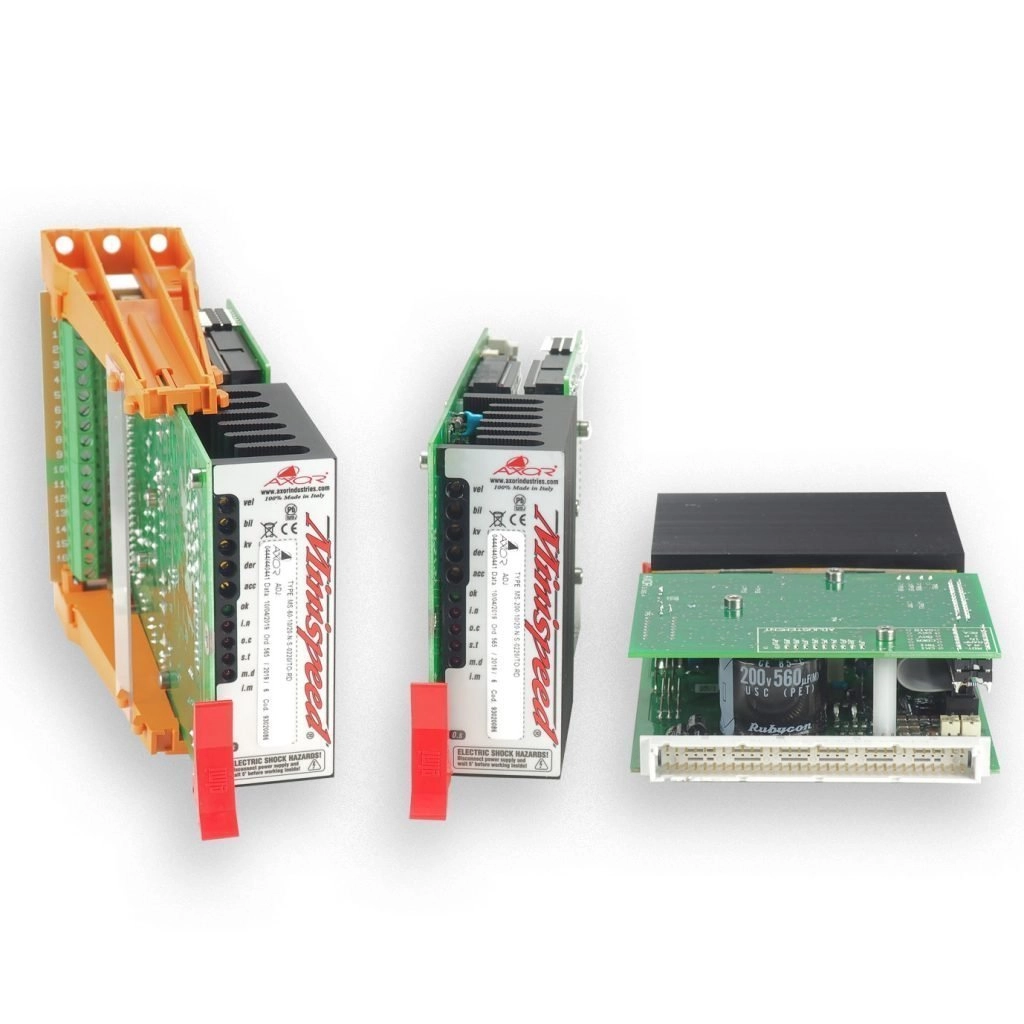

Axor Industries’ Minispeed is a modular DC Brushed Servo Drive in Eurocard pcb format suitable for low power DC servomotor applications.

This variable speed drive for permanent magnet DC servo motors is available with 3 different frame sizes for DC brushed servo motors up to 15Nm:

  • Size 60, 140, 200
  • Supply range from 20Vdc to 275Vdc
  • Motor armature voltage from 12Vdc to 200Vdc
  • Nominal Current from 2A to 25A
  • Peak current from 4A to 50A

CONTROL MODES

  • Input reference ±10V analog speed (differential ±10V)
  • Demand current
  • Torque Mode
  • PWM+Direction

FEEDBACKS

  • Tachogenerator from 3V to 60V KRpm
  • Encoder
  • Armature
