Entegre Motor & Sürücüler

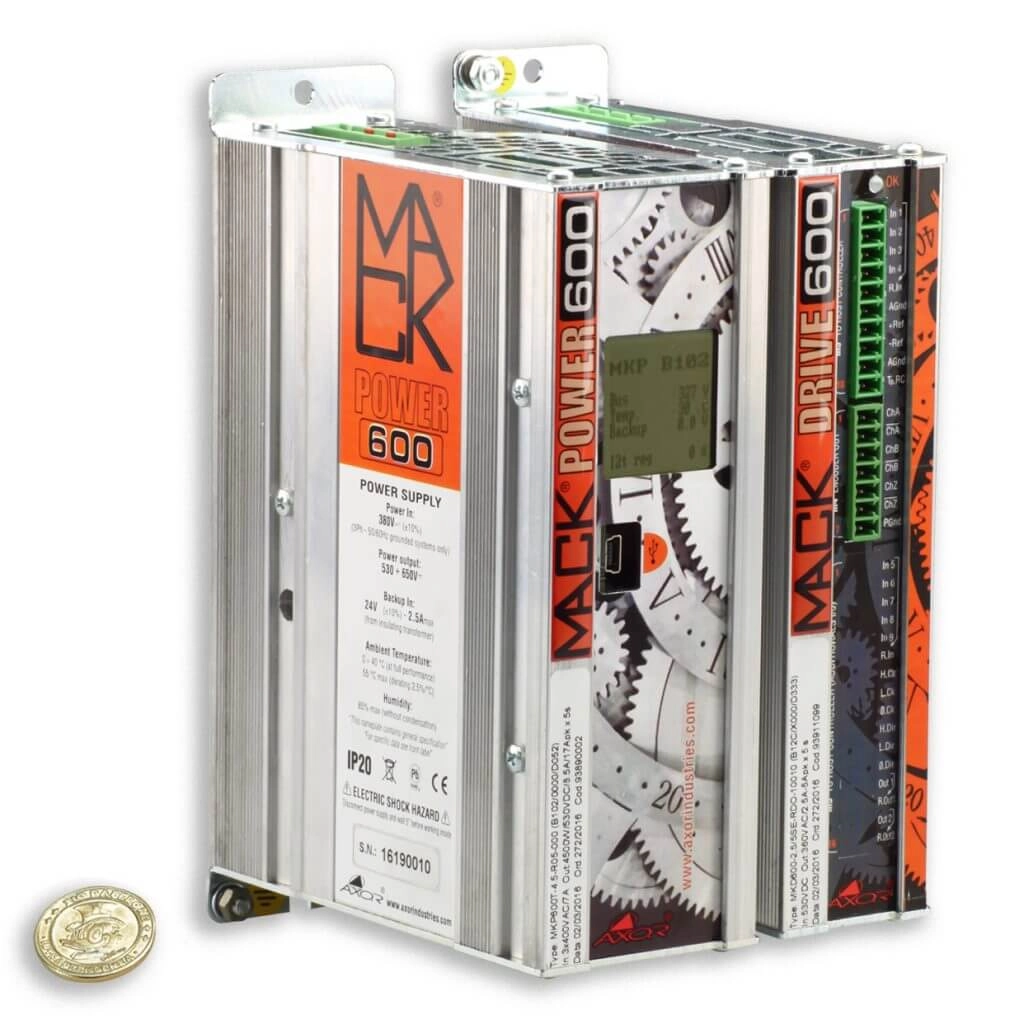

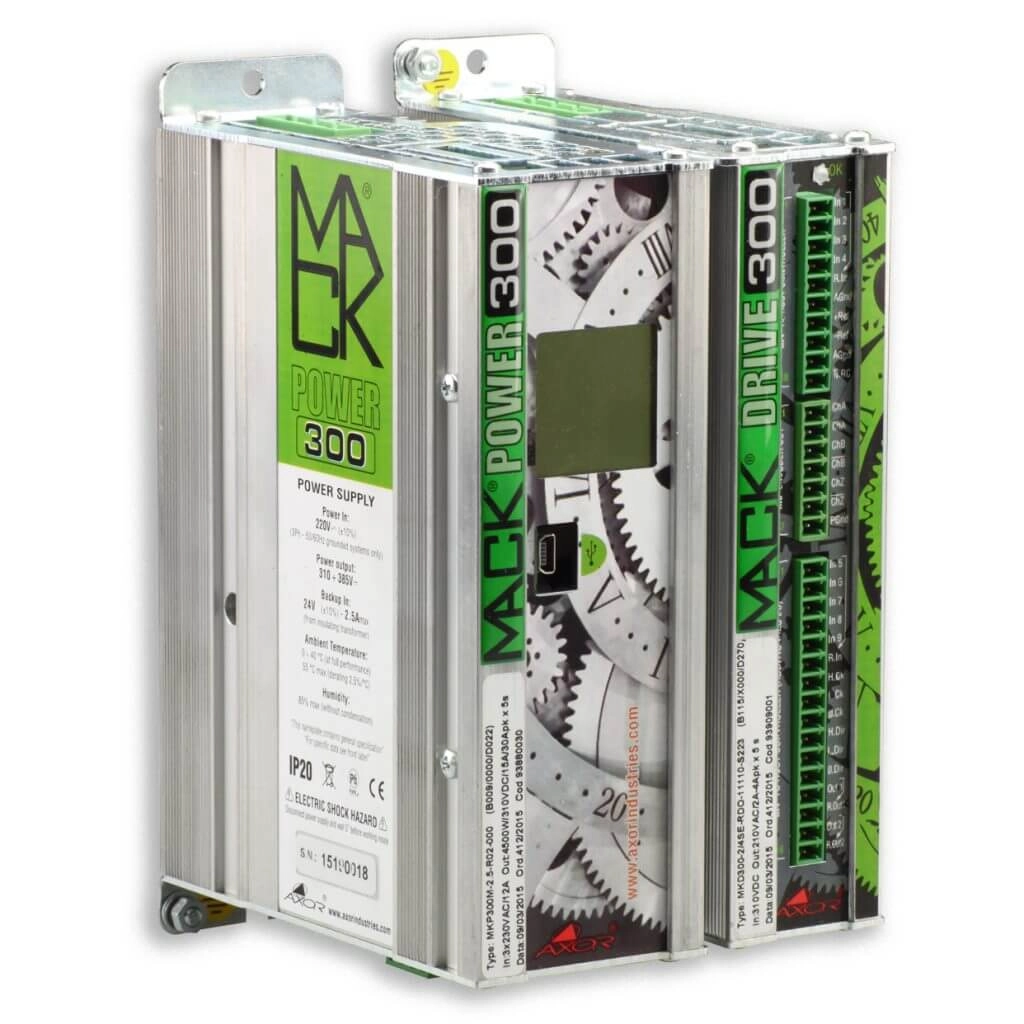

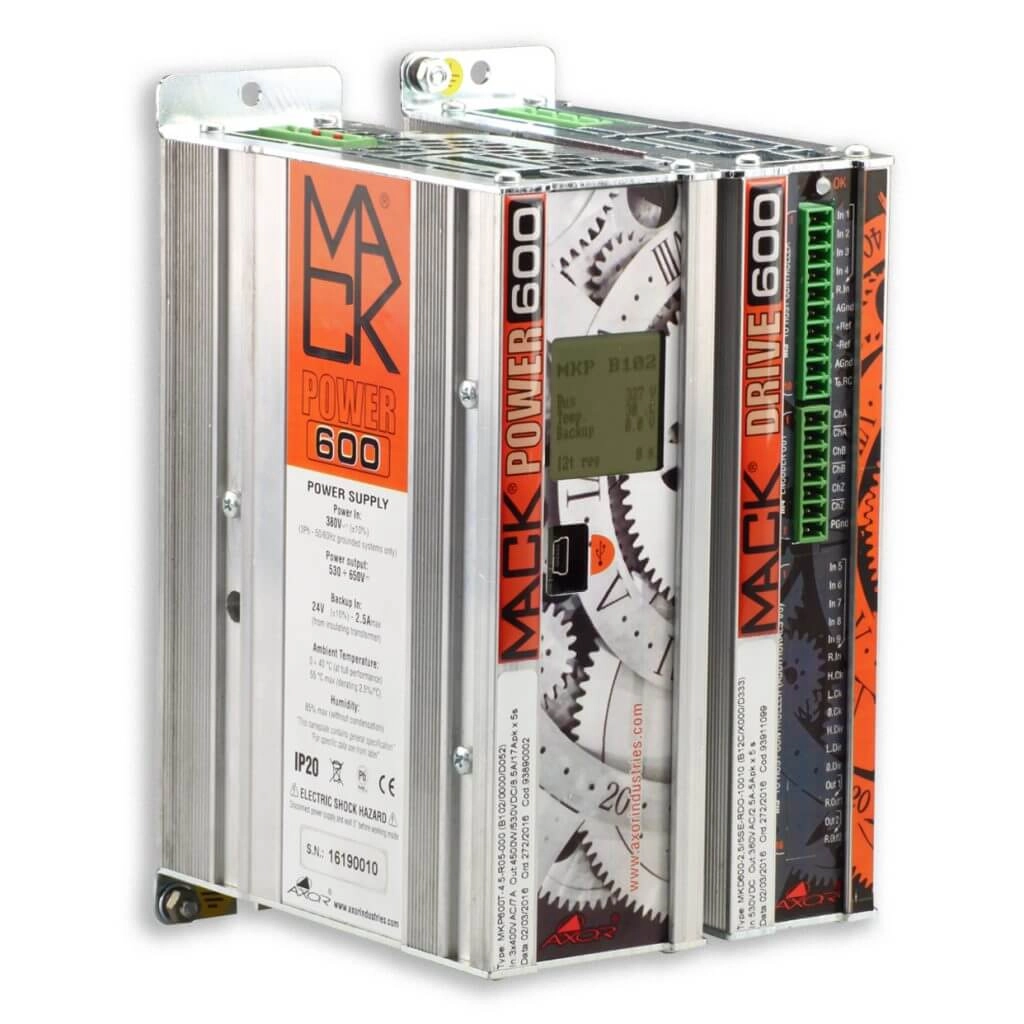

Mack DrivePWR

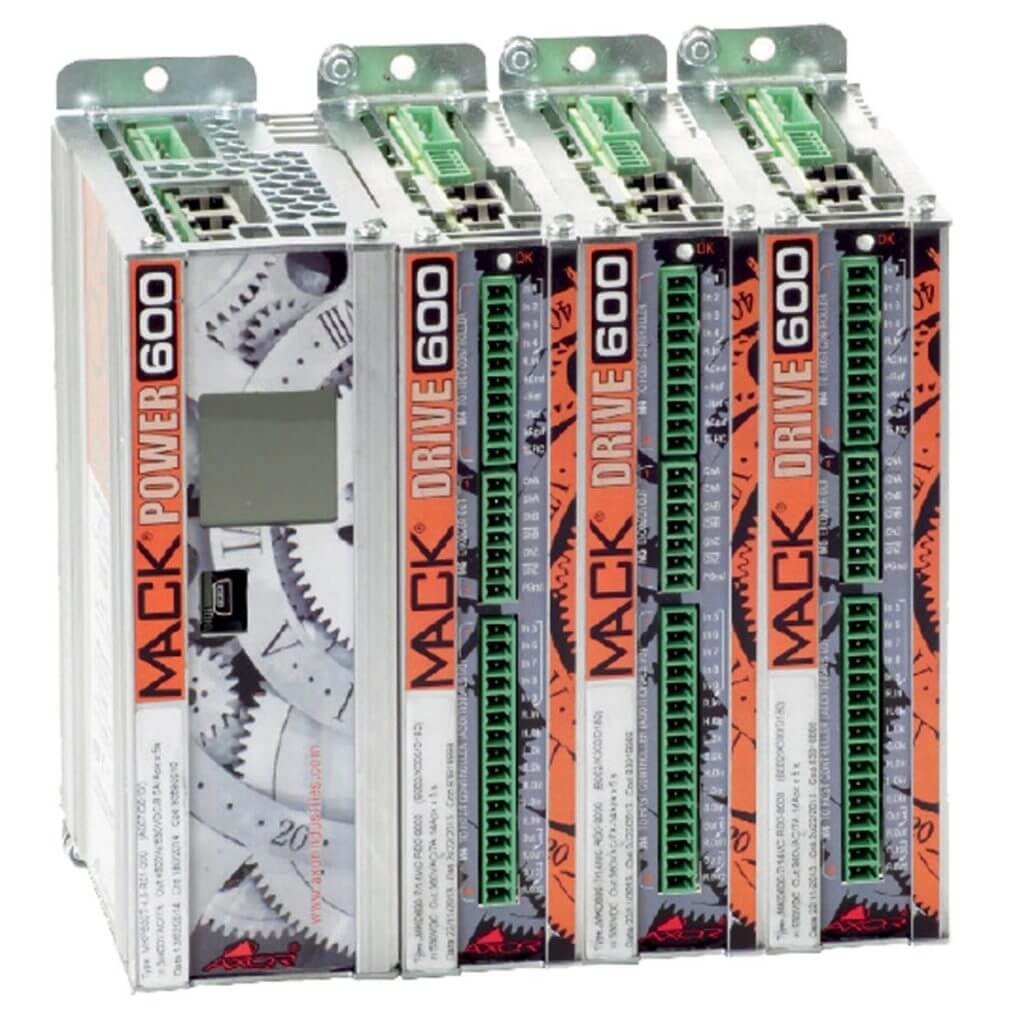

Multi-axis system with a single power unit that offers centralized drive setup and control, reduction of heat stress on the drives and a common braking resistance. It is especially suited to applications involving 3 to 12 drives. The flexiblity of the hardware enables countless solutions and the customer-specific software can be factory loaded or easily downloaded on demand for optimum stock management.

FEATURES

  • Very compact multiaxis servo system for brushless motors
  • 230V & 400V Power supplies direct from the mains
  • Built-in EMC line filter, in-rush and braking circuits
  • Suitable for MACK Motors up to 11 Nm (single hybrid cable)
  • Suitable for other motors (2 cables)
  • Single power unit for several drives
  • Single USB on Mack Power for all drive setup, control, diagnosis
  • Serial Encoder compatible with Mack single hybrid motor cable
  • SpeederOne PC software interface
  • Emulated encoder
  • Holding brake control
  • Over/Undervoltage, overtemperature, overcurrent and I2t control
  • 9 digital IN, 2 analog OUT, 2 digital OUT: fully programmable
  • STO Safe Torque Off
  •  Single braking resistance on Mack Power for all Drives

Servo Drives AC-DC
