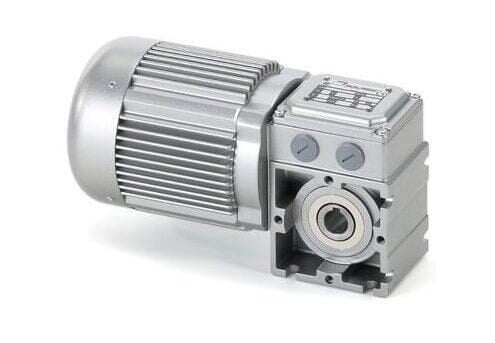

WORM GEARED MOTORS.
Three-phase motors from 250 to 740 W. Centre distance 38 mm.
MOTOR:
asynchronous three phase with 2 or 4 poles, totally enclosed with external ventilation. Class F winding. IP65 protection according to CEI EN 60529.
GEAR UNIT:
with die-cast aluminium casing. Centre distance 38 mm. CARO bronze ring 120-160 HB hardness.
Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil.
Sealing rings made in special rubber for high temperatures.
7 gear ratios (i) available, from 5 to 100. Rated torque 35 Nm.
Version B3 and B5/S left version – B5/D right version.
