Mini Motor

PCC

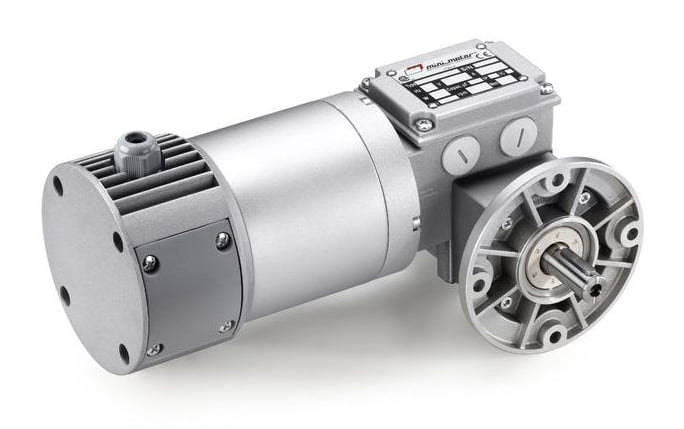

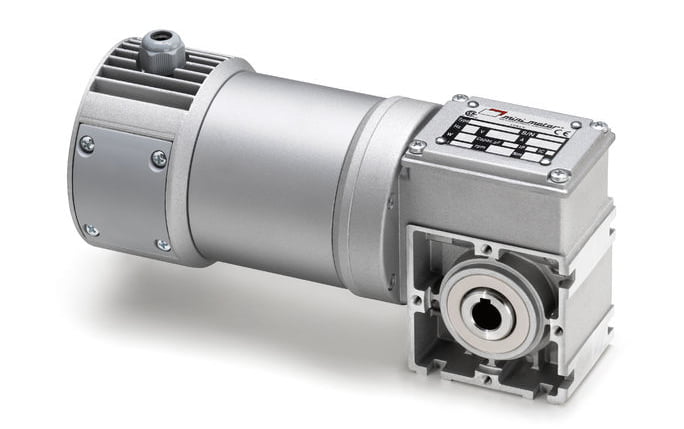

WORM SCREW GEAR MOTOR
Worm geared motors. DC motors from 75 to 150 W with permanent magnets. Centre distance 32 mm.

MOTOR:
direct current with permanent magnets, totally enclosed without external ventilation. Class F winding. 24 Vdc power supply. Absorbed power 230 W. IP65 protection according to CEI EN 60529

GEAR UNIT:
with die-cast aluminium casing. Centre distance 32 mm. CARO bronze ring 120-160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures.

10 gear ratios (i) available, from 5 to 100. Rated torque 18 Nm. Version B3 or B5. B5/S left version – B5/D right version.
